Variable Frequency 6mm Wear Resistacne Pipe Cladding Equipment

Name: Variable Frequency 6mm Wear Resistacne Pipe Cladding Equipment
Brand: JINHUA
Price: 2000 USD

Brand Name : JINHUA

Model Number : JH-360

Place of Origin : WUXI, CHINA

MOQ : 1 Unit

Price : USD+2000-50000+Unit

Payment Terms : T/T

Supply Ability : 30+Units+Per Month

Delivery Time : 15-60 days

Packaging Details : Wooden Box Package

Machine type : Pipe Cladding Machine, Pipe Inner Hardfacing Machine, Pipe Inner Surface Overlay Welding Machine

Condition : New

Material : Carbon Steel, Alloy Steel

After-Sales Service : Engineers available to service machinery overseas, Field installation, commissioning and training, Video technical support, Field maintenance and repair service

Warranty : 1 Year

Color : Yellow, Blue, Customized

Voltage : 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V or 220V/60HZ /3P (Also According To Your local voltage)

Industries : Cement, Steel, Mining, Power, Security, Agriculture, Recycling

Contact Now

Wear Resistacne Pipe Automatic Hardfacing Machine, Automatic Cladding Machine for Wear Tube

1. Machine Introduction

High degree of automation, ordinary skilled workers can operate independently through 2 days of training. One button start and stop greatly simplifies the operation process of the equipment. The weld forming methods include spiral swing welding, spiral welding and straight welding. The diameter of the clamping pipe of the equipment is 120mm to 800mm. If necessary, a larger diameter can be customized and the maximum welding length is 6 meters. The special welding torch and welding cable reduce the resistance of wire feeding, so as to realize the stable wire feeding of the welding gun at the position of 6 meters after the wire end of the wire feeder.

2. Machine Parameter

Diameter Range of Overlay Welding	Φ150-3000mm
Maximum Overlay Welding Length	6000 mm
Overlay Welding Speed	0-250mm /min
Overlay Welding Thickness	3-6mm
Allowable Weight	2.0T
Maximum Power	28.5Kw
Water Cooling Control System	Variable frequency circulating water cooling
Control System	The control system adopts Variable frequency + digital system control
Idle Travel Speed	0-7000mm/min
Allowable Material for Overlay Welding	Q235 Q345
Elevation of Overlay Welding Torch	0-100mm
Elevating Mode of Overlay Welding Torch	Manual mechanical lifting
Precision Standard of Whole Machine	Conforming to JB/T5102-1999
Linear Positioning Accuracy	±1mm/5m
Velocity Error	±2%

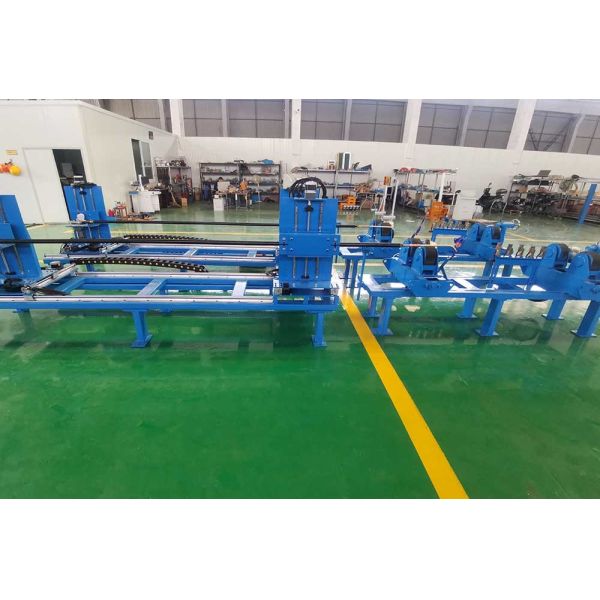

3. Pictures

Variable Frequency 6mm Wear Resistacne Pipe Cladding Equipment
